Technical Details

View the Morgan Marine technical details.

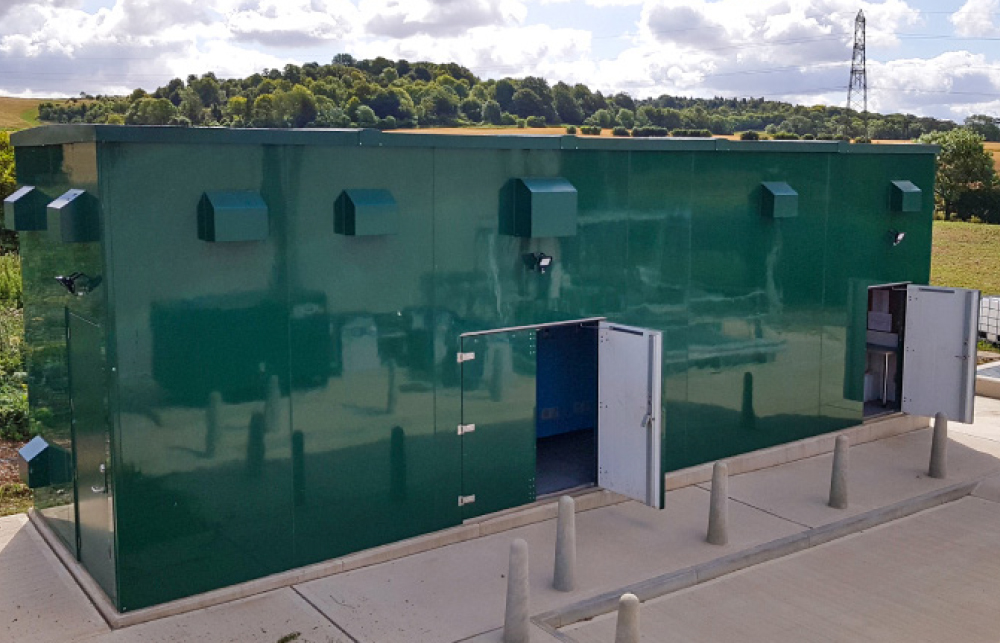

Multiform Construction

Glass Reinforced Polymer composite using a variety of core materials dependant on clients requirements for insulation, fire ratings, security ratings and attenuation.

Structural reinforcement is included as required due to enclosure size and specific location. Housings are designed with a life expectancy in excess of 30 years.

Benefits of buying from Morgan Marine

Expert Advice

INSULATION

Standard construction has a U-Valve of 2.2W/m/°C. Higher levels of insulation are offered to meet client specifications and to meet building regulation u-values of Walls: 0.35W/m/°C Roofs: 0 25W/m/°C.

Flexibility

FIRE RESISTANCE

Morgan Marine offer half hour, one and two hour fire rated constructions, all have been independently tested. Self extinguishing resins can be used offering both 30 min and 60 min protection on surface spread of flame.

Hassle-Free Service

SOUND ATTENUATION

Standard construction offers a nominal 24dB acoustic performance over centre band frequency range 31.5Hz to 16kHz.Other standard levels of attenuation offered are 30, 32 and 35dB nominal acoustic performance.

Exceptional Eperience

ENVIRONMENTAL CONTROL

Ventilation options are offered based on clients individual requirements of either heat to be dissipated or air changes needed. Information required is external ambient temperature, maximum internal allowable temperature and heat to be dissipated. After calculations ventilation will be offered as either natural, forced or as Air Conditioning.

Exceptional Eperience

ELECTRICS

As NICEIC electrical contractors all installations are carried out in accordance with current IEE regulations to BS7671: 2018, Zone 0, 1 or 2 installations are also available. We can install customer's equipment if required.

Exceptional Eperience

EXPLOSION RELIEF

Explosion relieving roofs and panels are used to safely discharge the effect of the ignition of an inflammable mixture from within an enclosure, notably for British Gas or Regional Electric Companies. Tests have been successfully completed for both types of explosions and these conform to the relevant specifications.

Relevant Design Standards

Eurocode 1:

Actions on structures (relevant sections)

Eurocode 1:

Actions on structures (relevant sections)

BS 6399, Part 1:

Actions on structures (relevant sections)

BS 6399, Part 2:

Loadings for buildings. Code of practice for wind loadings

BS 6399, Part 3:

Loadings for buildings. Code of practice for imposed roof loads

BS 476, Part 21:

Fire tests on materials and structures. Methods for determination of the fire resistance of load bearing elements of construction

BS 476, Part 22:

Fire tests on materials and structures. Methods for determination of the fire resistance of nonload bearing elements of construction

BS 476, Part 7:

Fire tests on materials and structures. Methods for classification of the surface spread of flame of products

BS 5395, Part 1:

Stairs, ladders and walkways. Code of practice for the design, construction and maintenance of straight stairs and winders

BS 5395, Part 3:

Stairs, ladders and walkways. Code of practice for the design, construction and maintenance of straight stairs and winders

BS 7671, 2018:

Requirements for Electrical Installations

BS EN 62305:

Protection Against Lightening

Security

All Security rated products are LPCB approved and tested to LPS 1175 by BRE, they include:

For full listings on security products please visit both Morgan Marine and PSF Wales at www.redbooklive.com

Please Note:

We have worked with a number of standards that aren’t listed above, should you have a particular requirement please contact our Design Team who will be able to help.

Machine and work handling capacities for steel

Guillotine3m x 12mm
CNC Press Brake3m x 160t
CNC Press Brake4m x 200t
Profiling Plasma20mm Mild Steel 25mm ST/ST
Profiling Plasma40mm mild steel, 25mm Stainless Steel and 20mm Aluminium
Profiling Gas150mm Steel
Punching40mm in 24mm
Sawing600mm x 400mm @ 90 degrees
Overhead Cranes5 off 10-15 Tonne Capacity
